Azad Engineering Company
Azad Engineering Company is a trusted manufacturer and supplier of high-quality Oil Expeller Machines and Oil Mill Equipment. With strong technical expertise and precision engineering, we provide reliable machinery designed for maximum oil recovery, durability, and smooth performance.
Our machines are widely used for extracting oil from mustard, groundnut, sesame, sunflower, soybean, and various other oil seeds. We focus on quality manufacturing, energy efficiency, and long service life to ensure maximum profitability for our customers.
Quality Assurance
ISO-grade manufacturing
Energy Efficient
Low power consumption
Precision Built
Durable steel construction
Our Products

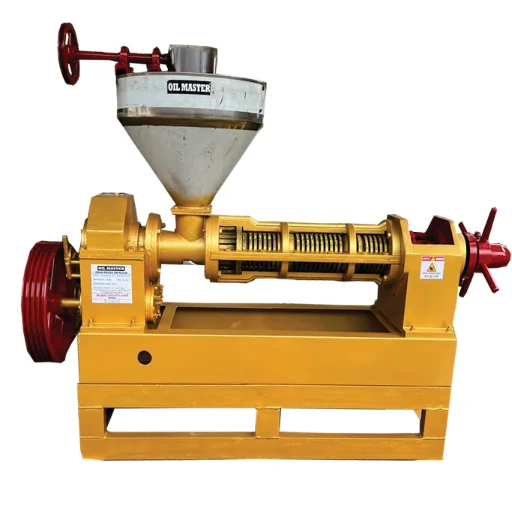

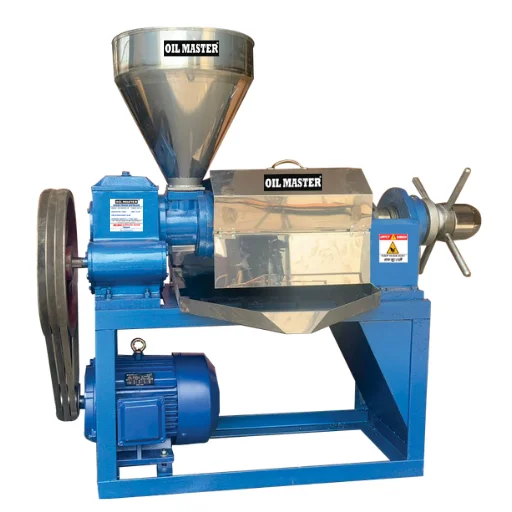

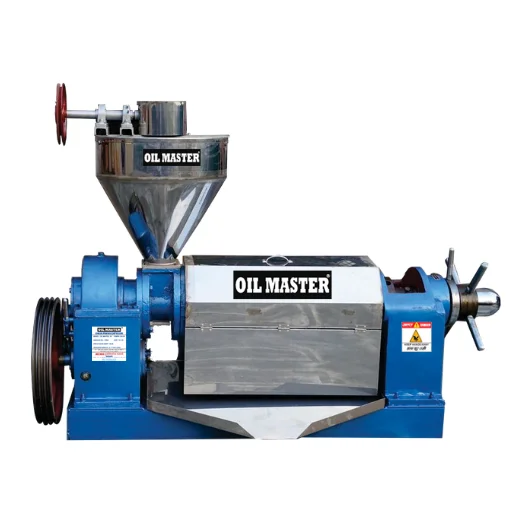

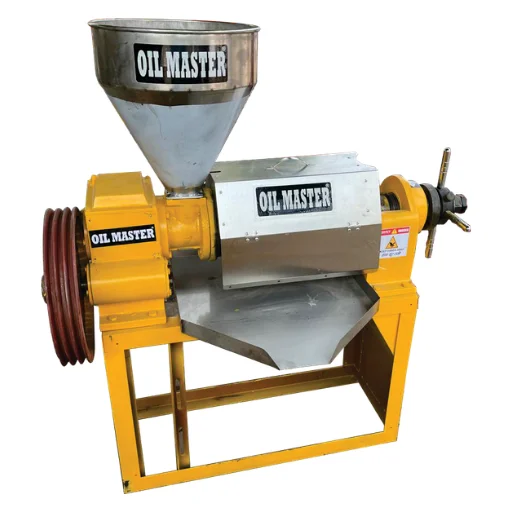

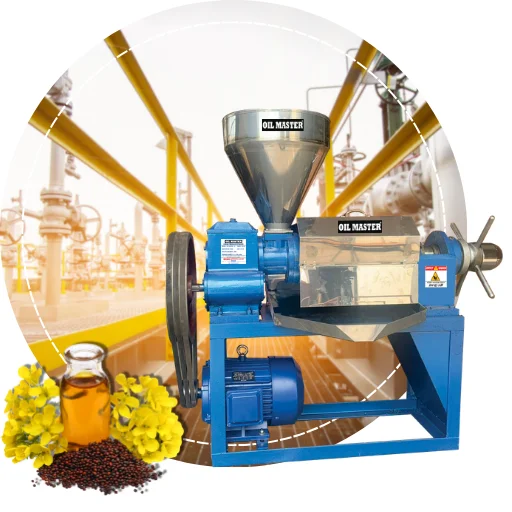

Cold Press Oil Expeller
A Cold Press Oil Expeller is an advanced oil extraction machine designed to extract oil from seeds and nuts without applying excessive heat. This natural extraction process helps retain the original nutrients, aroma, flavor, and essential properties of the oil, making it highly beneficial for health-conscious consumers and commercial oil producers.
Features:
- Heavy-duty steel body
- High oil extraction efficiency
- Low power consumption
- Continuous operation
- Minimal maintenance
- Suitable for multiple oil seeds
| S.NO | OIL EXPELLER | CRUSHING CAPACITY (APPROXIMATE) | POWER REQUIRED | DIMENSION | WEIGHT (APPROX) |
|---|---|---|---|---|---|
| 1 | CP-75 | 50-70 KGS/HR. | 7.5 Η.Ρ./1440 RPM | 120 x 400 x 900 mm³ | 220 KGS |
| 2 | CP-10 | 80-125 KGS/HR. | 10 H.P./960 RPM | 1600 x 700 x 1350 mm³ | 530 KGS |
| 3 | CP-15 | 125-200 KGS/HR. | 15 H.P./1440 RPM | 1850 X 700 X 1350 mm 3 | 580 KGS |
| 4 | CP-20 | 200-300 KGS/HR. | 20 H.P./960 RPM | 2000 X 800 1170 mm³ | 720 KGS |
| 5 | CP-25 | 300-400 KGS/HR. | 25 H.P. / 960 RPM | 2010 X 800 X 1380 mm³ | 820 KGS |
| 6 | CP-30 | 400-500 KGS/HR. | 30 H.P./960 RPM | 2220 X 750 X 1420 mm 3 | 980 KGS |

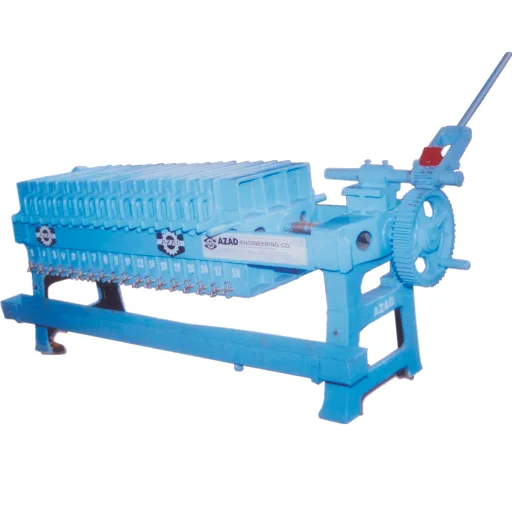

OIL FILTER PRESS
An Oil Filter Press is an essential machine used for removing impurities and solid particles from edible and non-edible oils after the extraction process. It plays a crucial role in improving the clarity, purity, and overall quality of oil before packaging or further processing. Whether used in small-scale oil mills or large commercial production units, an Oil Filter Press ensures clean and market-ready oil with enhanced shelf life.
Features:
- High filtration accuracy
- Compact design
- Easy cleaning and operation
- Durable filter plates
- Leak-proof performance
| S.NO | OIL EXPELLER | SUITABLE FILTER PRESS | POWER REQUIRED | CAPACITY (APPROXIMATE) | WEIGHT (APPROXIMATE) |
|---|---|---|---|---|---|
| 1 | CP-75 | 16" X 16"-16 PLATES | 1 H.P. | 60 KGS / HR. | 530 KGS |
| 2 | CP-10 | 18" X 18"-18 PLATES | 1 H.P. | 80 KGS / HR. | 900 KGS |
| 3 | CP-15 | 21" X 21"-21 PLATES | 1.5 H.P. | 150 KGS / HR. | 1050 KGS |
| 4 | CP-20 | 24" X 24"-30 PLATES | 2 H.P. | 300 KGS / HR. | 2400 KGS |
| 5 | CP-25 | 30" X 30"-30 PLATES | 3 H.P. | 500 KGS/HR. | 4100 KGS |
| 6 | CP-30 | 36" X 36"-36 PLATES | 5 H.P. | 700 KGS / HR. | 7500 KGS |

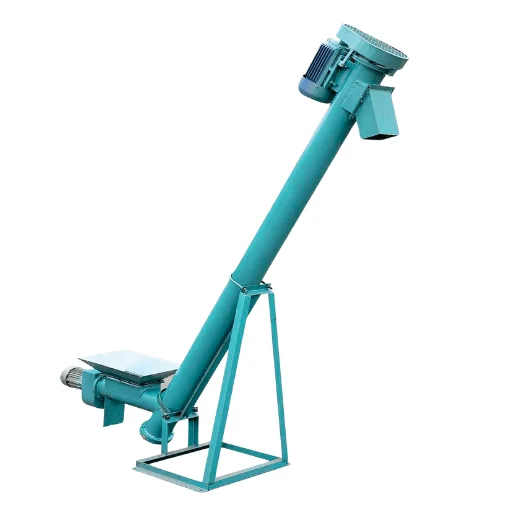

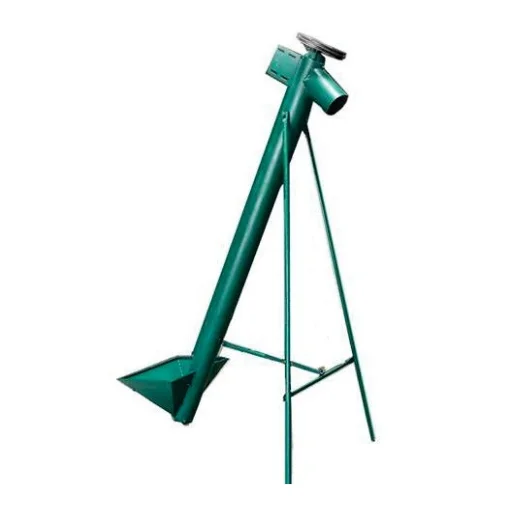

SEED CONVEYOR
A Seed Conveyor is an essential material handling system designed to transport oil seeds, grains, and other agricultural products safely and efficiently from one processing stage to another. It plays a vital role in oil mills, food processing units, grain storage facilities, and agricultural industries where smooth and continuous movement of seeds is required.
Features:
- Heavy-duty steel body
- High oil extraction efficiency
- Low power consumption
- Continuous operation
- Minimal maintenance
- Suitable for multiple oil seeds
| S.NO | MODEL | CONVEYING HEIGHT (MM) | CONVEYING QUANTITY (KG/HR) APPROX. | POWER REQUIRED (KW) | TYPE |
|---|---|---|---|---|---|
| 1 | OMSC-10A | 1740-2700 | 900 | 1.1 | A |
| 2 | OMSC-12A | 1350-1740 | 1500 | 1.5 | A |
| 3 | OMSC-10B | 1350-1740 | 1500 | 1.5 +0.25 | B |
Spare Parts
Gearbox Assembly
Sleeve Nut
Big Gear
Small Gear
Pinion
Kettle Gear Set
Chamber Ring and Worm
Cammer
Worm
Assembly
Chamber
Main Shaft
Side Shaft
Intermediate Shaft
Plain Patti
Why Azad Engineering Company?
Strong & Durable Machines
Built with heavy-duty materials for long operational life.
High Oil Yield Efficiency
Maximum oil extraction with minimal waste.
Quality-Tested Equipment
Every machine undergoes rigorous quality inspection.
Competitive Pricing
Best value without compromising on quality.
After-Sales Support
Dedicated technical support and maintenance guidance.
Spare Parts Availability
Ready stock of genuine spare parts for quick replacement.
Our Machines Are Ideal For
Commercial Oil Production Plants
Agro Processing Units
Small Oil Mills
Medium Scale Oil Processing Units
Start Your Oil Production Business with
Confidence
Partner with Azad Engineering Company for reliable oil expeller machines and complete oil mill solutions.
